#Hololens – This is the right way to work with #Unity packages and #HoloToolkit

Hello!

Yesterday I was lucky enough to be part of an online / virtual meeting with other Hololens developers. One of them teach us the correct way to use packages in Unity. In fact, the example that he said (and I share here) is based on the way we must use HoloToolkit.

I have written some posts on HoloToolkit, I usually copy the HoloToolkit assets to the directory [Assets] in a Unity 3D project and it works. However there is a better way to do this, a much better way. So, I will describe the steps required in 3 samples scenarios working with HoloToolkit.

Create a HoloToolkit Unity Package

  • Clone / download the latest version of HoloToolkit from GitHub
  • Open Unity and select the option “Open project”
  • Select the folder “HoloToolkit-Unity-master”

clipboard03

  • Unity will create a new project and it will include the contents of HoloToolkit in the Assets

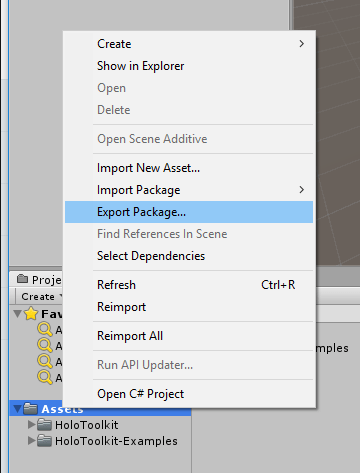

  • In the Projects pane, select the Assets folder, display the shortcut menu and select the option [Export Package]

clipboard05

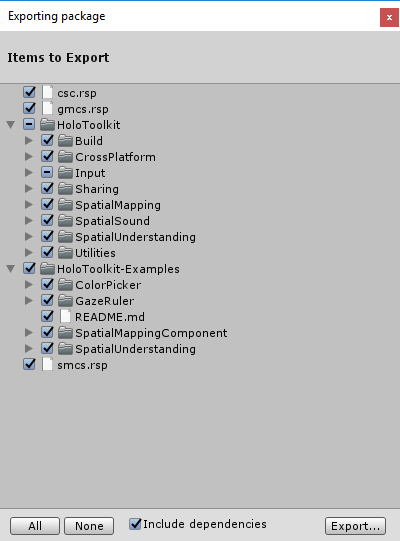

  • Select the items to be exported. By default, it is advisable to leave all selected, but if you already have experience with these Assets you can create a custom package

clipboard06

  • Select the directory and destination and create the Unity Package

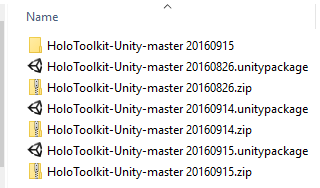

  • Personally, I’d rather have a package for each set of big changes that exist in HoloToolkit, so that I add the suffix year, month and day to each package

clipboard08

  • Done !

Now you can close Unity and start to work with this package in a new Unity project

Use the HoloToolkit Unity Package in a Unity project

  • Create a new 3D project in Unity
  • Now we must import the HoloToolkit package. Select the menu [Assets / Import Package / Custom Package]

clipboard11

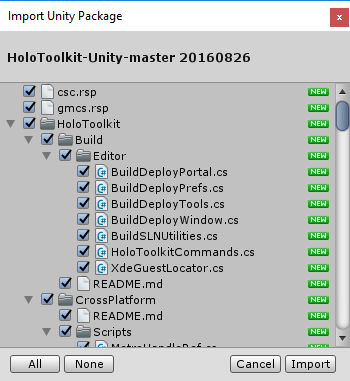

  • This option will show us the elements of the Unity Package we want to import. For this sample, I will import one package a couple of weeks old to show the correct way of update a package later.

clipboard12

  • At this time, Unity is responsible for importing all the elements (this is similar to copy all the files in the Assets directory)

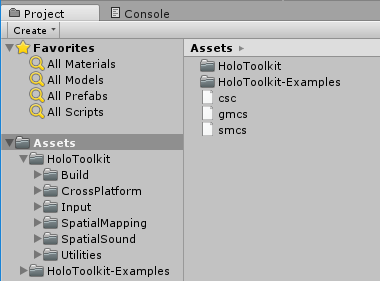

  • Once imported, you can see all the items in the Assets directory

clipboard14

  • We can now begin to work with the HoloToolkit assets in our Unity project

Update a HoloToolkit package in Unity

  • In this scenario we will perform the same steps to import a package
  • The important point here, is when there are changes in the package. We will we be warned when we are going to import the package
  • For example in the picture below you can see changes in the file [Build / Editor / BuildDeployWindow.cs] and new files in [Imput / Plugins / … ]

clipboard15

  • This allows us to know the changes which exist between different versions of a package, and also to select the items that we want to use



And this is the correct way to work with Unity Packages applied to HoloToolkit.

Greetings @ Toronto

El Bruno
