Hi!
Now we already have downloaded the YoloV2 ONNX file. We can create an UWP App to use the model. Here’s the step by step and some comments
1. We create a new Windows 10 UWP App. As always the name is super original
2. We are going to use the camera as images source to be processed with YoloV2. There are many examples of how to do this. In this case we will use a control of Windows Community Toolkit V 3.0 (as I wrote in a previous post). We add the following Packages Via NuGet
- Microsoft.Toolkit.Uwp.UI
- Microsoft.Toolkit.Uwp.UI.Controls
3. We add a control CameraPreview In our Xaml and we’re already 2 lines away of having the camera working.
4. We enable the necessary permissions to use the camera in the app manifest. With The following lines our app have a functional camera
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| using Windows.UI.Xaml.Controls; | |
| using Windows.UI.Xaml.Navigation; | |
| namespace UwpAppYolo01 | |
| { | |
| public sealed partial class MainPage : Page | |
| { | |
| public MainPage() | |
| { | |
| InitializeComponent(); | |
| } | |
| protected override async void OnNavigatedTo(NavigationEventArgs e) | |
| { | |
| await CameraPreview.StartAsync(); | |
| CameraPreview.CameraHelper.FrameArrived += CameraHelper_FrameArrived; | |
| } | |
| private void CameraHelper_FrameArrived(object sender, Microsoft.Toolkit.Uwp.Helpers.FrameEventArgs e) | |
| { | |
| } | |
| } | |
| } |
5. The time has come to start using YoloV2. The latest versions of Visual Studio 2017 allow us to import an ONNX model into a project and the IDE will create the classes needed to work with it. We add as an existing file to the file [Tiny-YOLOv2. Onnx].
Our solution should be similar to the following
6. The class that is generated in VS to work with the model It’s pretty ugly.
7. My suggestion, replace [8d4d0fa662b14686b1865e0e6d3c598eByTinyYoloV2]
8. Now we can see the generated class and within it we can find 3 classes
- An Input class for the Model
- An Output class for the Model
- A class to work with the Model
It’s time to load the model into our App. We do this before initializing the camera as shown in the following Code
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| using System; | |
| using Windows.UI.Xaml.Controls; | |
| using Windows.UI.Xaml.Navigation; | |
| namespace UwpAppYolo01 | |
| { | |
| public sealed partial class MainPage : Page | |
| { | |
| private TinyYoloV2Model _model; | |
| public MainPage() | |
| { | |
| InitializeComponent(); | |
| } | |
| protected override async void OnNavigatedTo(NavigationEventArgs e) | |
| { | |
| LoadYoloOnnxModel(); | |
| await CameraPreview.StartAsync(); | |
| CameraPreview.CameraHelper.FrameArrived += CameraHelper_FrameArrived; | |
| } | |
| private async void LoadYoloOnnxModel() | |
| { | |
| var file = await Windows.Storage.StorageFile.GetFileFromApplicationUriAsync(new Uri("ms-appx:///Tiny-YOLOv2.onnx")); | |
| _model = await TinyYoloV2Model.CreateTinyYoloV2Model(file); //, | |
| } | |
| private void CameraHelper_FrameArrived(object sender, Microsoft.Toolkit.Uwp.Helpers.FrameEventArgs e) | |
| { | |
| } | |
| } | |
| } |

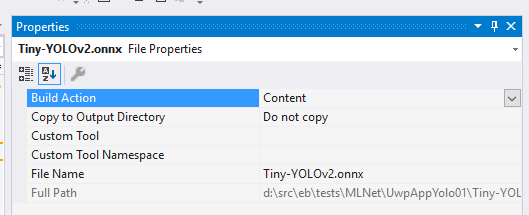

9. Because we will use the model as part of our App, we have to define that it be treated as a Content in the process of Build
10. The next step is to evaluate a Frame Of the camera with the YOLOV2 model. Here the code shows us how we use the classes we create when we import the model.
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| private async void CameraHelper_FrameArrived(object sender, Microsoft.Toolkit.Uwp.Helpers.FrameEventArgs e) | |
| { | |
| if (e?.VideoFrame?.SoftwareBitmap == null) return; | |
| var input = new TinyYoloV2ModelInput {image = e.VideoFrame}; | |
| var output = await _model.EvaluateAsync(input); | |
| Debug.WriteLine(output.grid.ToString()); | |
| } |
11. Finally a Break Point is an useful way to show the output of the model and the information of the model output, which we will have to process later.
Well, at this point we are already using the model YoloV2 to analyze the frames of the camera. In the following posts I’ll write on how to work with the output of the model to get information which makes sense to us!
Important: At some point I should write about the model conversion capabilities that Visual Studio Tools brings to us For AI.
Happy Coding!
Greetings @ Toronto
El Bruno
