#Onnx – Object recognition with #CustomVision and ONNX in Windows applications using WinML


After a couple of weeks of almost no posts, mostly because of holidays, family trips and some fever days at home, now it’s time to get back to blogging. One of the outstanding issues I have to write is related on how to use ONNX models exported from Custom Vision projects (CV from now on More).  Let’s start With the definition of this service:

The Azure Custom Vision API is a cognitive service that lets you build, deploy and improve custom image classifiers. An image classifier is an AI service that sorts images into classes (tags) according to certain characteristics. Unlike the Computer Vision service, Custom Vision allows you to create your own classifications.

There are many tutorials on how to create a CV project, I recommend the official Microsoft documentation, for example:

For this series of posts, I’ve created a [custom object detection] model using some of my Marvel figures.

marvel custom vision sample

The model is successfully trained using 3 [labels]

  • Venom
  • Rocket_Racoon
  • Iron_Fist

The metrics of this are pretty good, with 100% Precision, 100% Recall and 100% mAP. From the official documentation, let’s recap on this terms.

Precision indicates the fraction of identified classifications that were correct. For example, if the model identified 100 images as dogs, and 99 of them were actually of dogs, then the precision would be 99%.
Recall indicates the fraction of actual classifications that were correctly identified. For example, if there were actually 100 images of apples, and the model identified 80 as apples, the recall would be 80%.

marvel custom vision iteration 3 trained

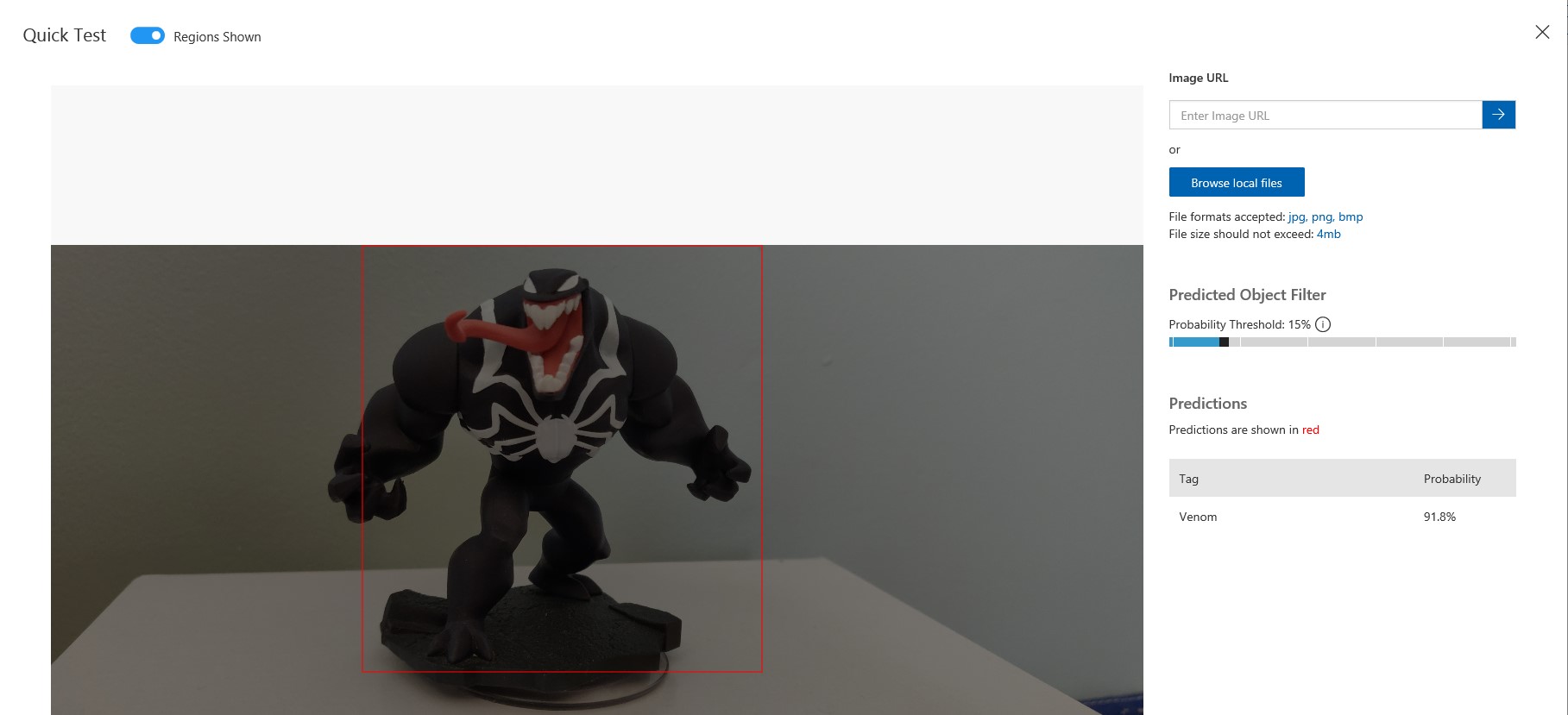

The model also seems to work very well with simple images of these toys. The test from the URL of customvision.ai shows us that using photo of Venom, the service test return the Venom label with more 90% of score.

marvel custom vision test with venom toy

The simplest way to use this model is by making an HTTP call. The following example shows how to make this call from a app Of the console in C#. The full app can be seen in https://github.com/elbruno/events/tree/master/2019%2001%2010%20CodeMash%20CustomVision/CSharp/CustomVisionMarvelConsole01, although it is very simple

using System;
using System.IO;
using System.Net.Http;
using System.Net.Http.Headers;
using System.Threading.Tasks;
using Newtonsoft.Json;
using Newtonsoft.Json.Linq;
namespace CustomVisionMarvelConsole01
static class Program
static void Main()
static async Task MakePredictionRequest(string imageFilePath)
var client = new HttpClient();
client.DefaultRequestHeaders.Add("Prediction-Key", "<Custom Vision Prediction Key>");
var url = "https://southcentralus.api.cognitive.microsoft.com/customvision/v2.0/Prediction/<Custom Vision AppKey>/image?iterationId=<Custom Vision IterationId>";
var byteData = GetImageAsByteArray(imageFilePath);
using (var content = new ByteArrayContent(byteData))
content.Headers.ContentType = new MediaTypeHeaderValue("application/octet-stream");
var response = await client.PostAsync(url, content);
var jsonResponse = await response.Content.ReadAsStringAsync();
var prettyJson = JToken.Parse(jsonResponse).ToString(Formatting.Indented);
static byte[] GetImageAsByteArray(string imageFilePath)
var fileStream = new FileStream(imageFilePath, FileMode.Open, FileAccess.Read);
var binaryReader = new BinaryReader(fileStream);
return binaryReader.ReadBytes((int)fileStream.Length);

view raw


hosted with ❤ by GitHub

Well, in next posts show how to export this model to ONNX format and then how to use the file ONNX in a app Windows or in a container with Docker..

Happy Coding!

Greetings @ Toronto

El Bruno
