Hi !
Today’s post is a simple one that I’ll use for sure in the future:
How to make an HTTP Post Request using Postman to analyze an image using a Custom Vision project hosted in a docker container.
In my previous posts I share the necessary steps to export a CustomVision.ai project and run the project in docker. I also show how to send images for analysis from a .NetCore Console App.
Today I’ll use another popular tool to perform the Http call to the docker container: Postman. This is one of the most popular tools in the web development world, and for sure is a good one if even myself knows how to use it!
So, once we have our session in Postman the container URL and POST are very straightforward. We are going to send an image, so we need to add a header with the Content-Type as image/jpg.

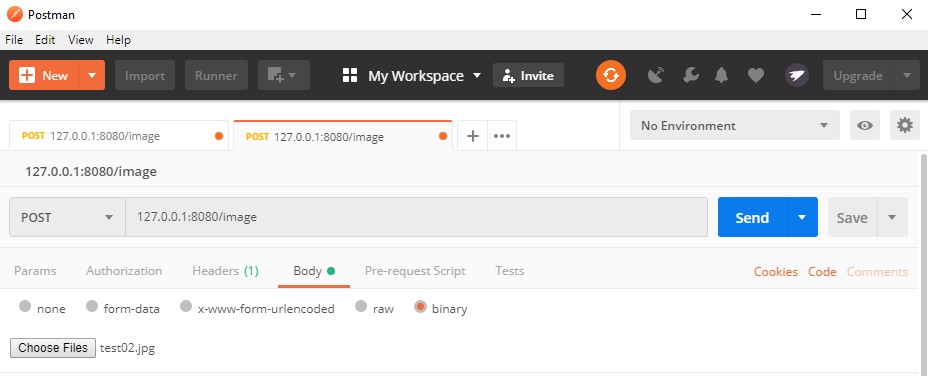

The image will be sent as binary content in the body. With 2 clicks we can select the file to use for testing.

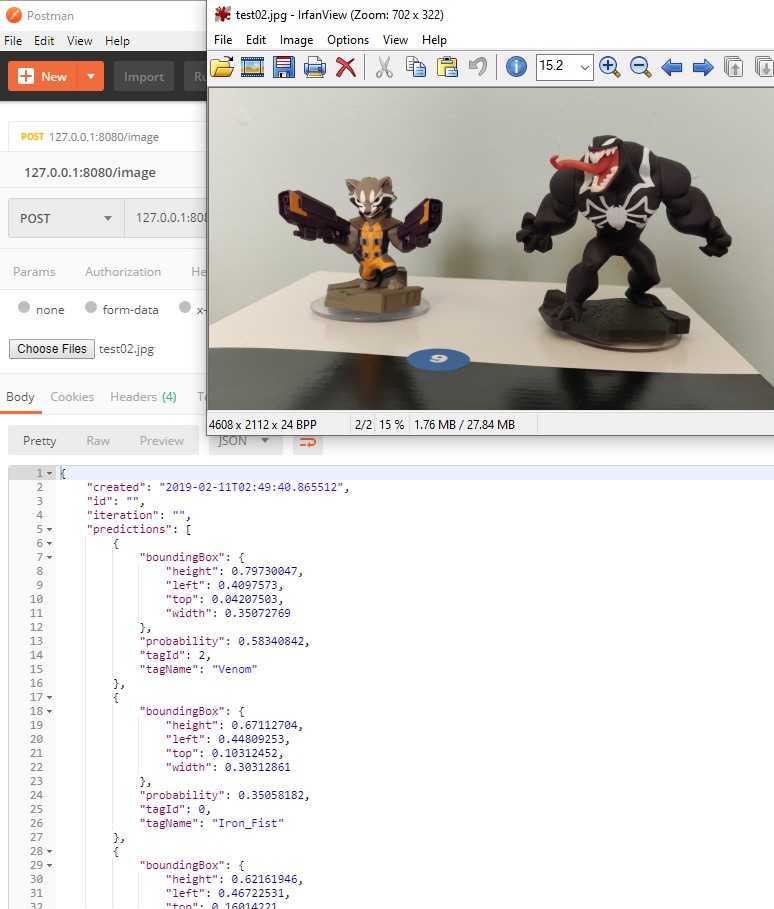

And finally, the result is an amazing JSON that we can analyze and see how our model performs
And as a bonus, once we have a test defined in PostMan, we can easily export the test as code in different programming languages like C#, Java, Go or Python.
Here is a sample of the generated python code
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| import http.client | |
| conn = http.client.HTTPConnection("127,0,0,1") | |
| headers = { | |
| 'Content-Type': "image/jpg", | |
| 'cache-control': "no-cache", | |
| 'Postman-Token': "847d04a8-0d05-4637-a056-7dbbdf10009b" | |
| } | |
| conn.request("POST", "image", headers=headers) | |
| res = conn.getresponse() | |
| data = res.read() | |
| print(data.decode("utf-8")) |
Happy coding!
Greetings @ Toronto
El Bruno
