Hi!
New version of Machine Learning.Net and in this version, we have the ability to use TensorFlow frozen models in ML.Net.
During the process of creating a pipeline, we can now use TensorFlow frozen models models and use them to train a model and make predictions. In a console application, at the time of adding the ML.Net packages we can see a new series of packages to work with TensorFlow
The following code is the best way to understand how a pipeline with a TF model works. While I’m building my Pipeline, I use a couple of trainers to load and modify images; and then on line 40 the TF model is added to the pipeline
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| using System; | |
| using System.IO; | |
| using Microsoft.ML; | |
| using Microsoft.ML.Runtime.Api; | |
| using Microsoft.ML.Trainers; | |
| using Microsoft.ML.Transforms; | |
| namespace MLNetConsole10 | |
| { | |
| class Program | |
| { | |
| static void Main(string[] args) | |
| { | |
| const int imageHeight = 32; | |
| const int imageWidth = 32; | |
| const string modelLocation = "cifar_model/frozen_model.pb"; | |
| const string dataFile = "images/images.tsv"; | |
| var imageFolder = Path.GetDirectoryName(dataFile); | |
| var pipeline = new LearningPipeline(); | |
| pipeline.Add(new Microsoft.ML.Data.TextLoader(dataFile).CreateFrom<CifarData>()); | |
| pipeline.Add(new ImageLoader(("ImagePath", "ImageReal")) | |
| { | |
| ImageFolder = imageFolder | |
| }); | |
| pipeline.Add(new ImageResizer(("ImageReal", "ImageCropped")) | |
| { | |
| ImageHeight = imageHeight, | |
| ImageWidth = imageWidth, | |
| Resizing = ImageResizerTransformResizingKind.IsoCrop | |
| }); | |
| pipeline.Add(new ImagePixelExtractor(("ImageCropped", "Input")) | |
| { | |
| UseAlpha = false, | |
| InterleaveArgb = true | |
| }); | |
| pipeline.Add(new TensorFlowScorer() | |
| { | |
| ModelFile = modelLocation, | |
| InputColumns = new[] { "Input" }, | |
| OutputColumn = "Output" | |
| }); | |
| pipeline.Add(new ColumnConcatenator("Features", "Output")); | |
| pipeline.Add(new TextToKeyConverter("Label")); | |
| pipeline.Add(new StochasticDualCoordinateAscentClassifier()); | |
| var model = pipeline.Train<CifarData, CifarPrediction>(); | |
| model.TryGetScoreLabelNames(out var scoreLabels); | |
| Console.WriteLine($"ScoreLabels.Length {scoreLabels.Length}"); | |
| Console.WriteLine($"banana {scoreLabels[0]}"); | |
| Console.WriteLine($"hotdog {scoreLabels[1]}"); | |
| Console.WriteLine($"tomato {scoreLabels[2]}"); | |
| var prediction = model.Predict(new CifarData() | |
| { | |
| ImagePath = "images/banana.jpg" | |
| }); | |
| Console.WriteLine($"{prediction.PredictedLabels[0]}"); | |
| Console.WriteLine($"{prediction.PredictedLabels[1]}"); | |
| Console.WriteLine($"{prediction.PredictedLabels[2]}"); | |
| } | |
| } | |
| public class CifarData | |
| { | |
| [Column("0")] | |
| public string ImagePath; | |
| [Column("1")] | |
| public string Label; | |
| } | |
| public class CifarPrediction | |
| { | |
| [ColumnName("Score")] | |
| public float[] PredictedLabels; | |
| } | |
| } |

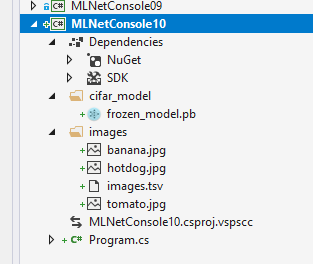

At this time the file [Cifar_model/FrozenModel. PB] is not part of the ML.Net repository. If you want to try the code, you can download a trial version from https://github.com/deeplearning4j/dl4j-test-resources/tree/master/src/main/resources/tf_graphs/examples/yolov2_608x608
Happy Coding!
Greetings @ Toronto
El Bruno
