#Windows10 – Rotating maps with C# and #SurfaceDial in UWP Apps

Hello!

In order to talk a little about how to create advanced menus for the Surface Dial, I will resume my view with a map and add an extra feature to this view:

  • Use the Surface Dial spin to control the map zoom
  • Use the Surface Dial spin to rotate the current view on the map

The first example I mentioned in the previous post, today I will show the 2nd functionality.

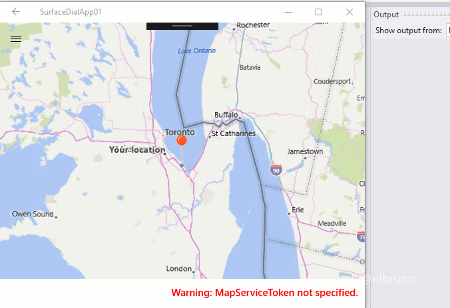

2017 10 12 SurfaceDial Maps 02.gif

The code to make this work is very simple. It is based on the following steps

  • To provide the 2 features with the Surface Dial, click on the dial, change the mode from Zoom to Rotate and again zoom
  • In the RotationChanged () event, the working mode is verified and changes are applied to the map

Very simple.



enum ControllerMode { zoom, rotate };
ControllerMode _controllerMode;
readonly RadialController _controller;
public MapPagePage()
{
locationService = new LocationService();
Center = new Geopoint(defaultPosition);
ZoomLevel = DefaultZoomLevel;
InitializeComponent();
_controller = RadialController.CreateForCurrentView();
_controller.RotationResolutionInDegrees = 0.2;
_controller.UseAutomaticHapticFeedback = false;
var myItem = RadialControllerMenuItem.CreateFromFontGlyph("El Bruno – Maps", "\xE128", "Segoe MDL2 Assets");
_controller.Menu.Items.Add(myItem);
_controller.ButtonClicked += ControllerButtonClicked;
_controller.RotationChanged += ControllerRotationChangedAsync;
}
private async void ControllerRotationChangedAsync(RadialController sender, RadialControllerRotationChangedEventArgs args)
{
Debug.WriteLine($"{args.RotationDeltaInDegrees}");
if (_controllerMode == ControllerMode.zoom)
mapControl.ZoomLevel = mapControl.ZoomLevel + args.RotationDeltaInDegrees;
else
await mapControl.TryRotateAsync(args.RotationDeltaInDegrees);
}
private void ControllerButtonClicked(RadialController sender, RadialControllerButtonClickedEventArgs args)
{
if (_controllerMode == ControllerMode.rotate)
_controllerMode = ControllerMode.zoom;
else
_controllerMode = ControllerMode.rotate;
}

In the next post, a little about how to work with the menu offered by the Surface Dial.

Happy Coding!

Source Code GitHub

Greetings @ Toronto

El Bruno

References
