Hello!

When you work with apps on Kinect that require a special code for each body recognized by the sensor, the entry point tends to be the collection of bodies returning to us in the line 15 of the first block in the following code example

        /// <summary>

        /// Array for the bodies

        /// </summary>

        private readonly Body[] _bodies;

        private void Reader_BodyFrameArrived(object sender, BodyFrameArrivedEventArgs e)

        {

            var dataReceived = false;

            var hasTrackedBody = false;

            using (var bodyFrame = e.FrameReference.AcquireFrame())

            {

                if (bodyFrame != null)

                {

                    bodyFrame.GetAndRefreshBodyData(_bodies);

                    dataReceived = true;

                }

            }

view raw
ElBrunoKinectV2GetBodies
hosted with ❤ by GitHub

        private void Reader_BodyFrameArrived(object sender, BodyFrameArrivedEventArgs e)

        {

            var dataReceived = false;

            var hasTrackedBody = false;

            var fullBodies = new Body[_kinectSensor.BodyFrameSource.BodyCount];

            using (var bodyFrame = e.FrameReference.AcquireFrame())

            {

                if (bodyFrame != null)

                {

                    bodyFrame.GetAndRefreshBodyData(fullBodies);

                    dataReceived = true;

                }

            }

            var trackedBodiesCount = fullBodies.Count(body => body.IsTracked);

            _bodies = new Body[trackedBodiesCount];

            var bodyToAddIndex = 0;

            for (var bodyIndex = 0; bodyIndex < fullBodies.Length; bodyIndex++)

            {

                var body = _bodies[bodyIndex];

                if (!body.IsTracked) continue;

                _bodies[bodyToAddIndex] = body;

                bodyToAddIndex++;

            }

view raw
ElBrunoKinectV2GetTrackedBodies
hosted with ❤ by GitHub

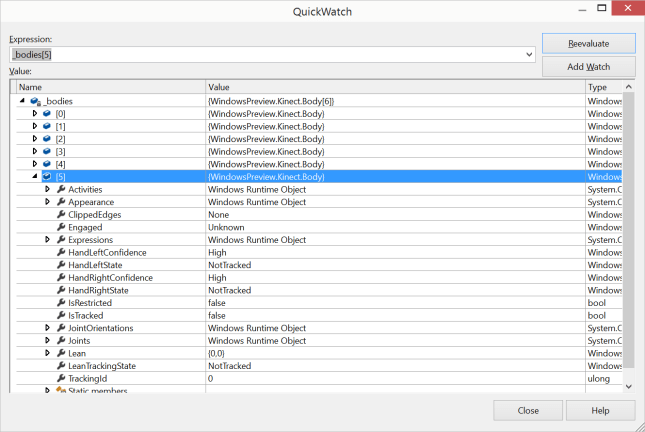

The problem with these lines is the collection of bodies it is usually complete by 6 elements, however there are no 6 people in front of the Kinect. The following image shows the collection and at the same, the 6th element is a correct body, but with the property IsTracked = False .

The solution is quite simple, a small array preprocessing, filtering by the bodies that are correctly identified. In line 16 of the second block of code we obtain the total number of bodies where IsTracked == True and from there to be processed.

Happy Codding

Greetings @ Home

/El Bruno
