Hi !
In a couple of hours, I’ll host a session where I show how to control a drone using Python π; and also how to access the drone camera and apply AI on top of the camera feed.
Python SWFL – Let’s code a drone to follow faces

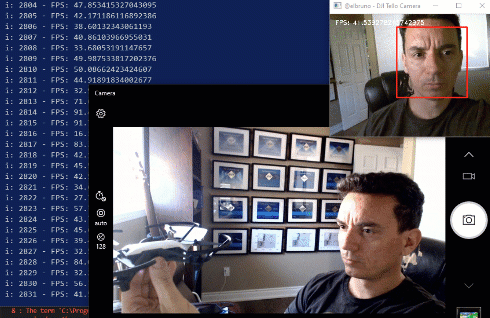

In example, this is the drone doing a simple face detection on me (in my old office)

If you want to know more, I write a lot about how to do this using Python and OpenCV, please check the references section.
And in the meantime, here is the full final demo.
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
# Copyright (c) 2022 | |
# Author : Bruno Capuano | |
# Create Time : 2022 Feb | |
# Change Log : | |
# – Open drone camera with openCV | |
# – Analyze camera frame with local custom vision project running in an app | |
# – Key D enable / disable object detection | |
# – On detection enabled | |
# – Save original image in tmp folder | |
# – Save image with bounding boxes and detected objects in det folder | |
# – Save json with bounding boxes and detected objects in det folder | |
# – Display bounding boxes and detected objects in the camera frame | |
# – Save a local video with the camera recorded | |
# – Key T for Take off, L to land; and ASDWRF to control the drone | |
# | |
# The MIT License (MIT) | |
# | |
# Permission is hereby granted, free of charge, to any person obtaining a copy | |
# of this software and associated documentation files (the "Software"), to deal | |
# in the Software without restriction, including without limitation the rights | |
# to use, copy, modify, merge, publish, distribute, sublicense, and/or sell | |
# copies of the Software, and to permit persons to whom the Software is | |
# furnished to do so, subject to the following conditions: | |
# | |
# The above copyright notice and this permission notice shall be included in | |
# all copies or substantial portions of the Software. | |
# | |
# THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR | |
# IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, | |
# FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE | |
# AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER | |
# LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, | |
# OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN | |
# THE SOFTWARE. | |
import socket | |
import time | |
import threading | |
import cv2 | |
import json | |
import requests | |
from flask import Flask, jsonify | |
def receiveData(): | |
global response | |
while True: | |
try: | |
response, _ = clientSocket.recvfrom(1024) | |
except: | |
break | |
def readStates(): | |
global battery | |
while True: | |
try: | |
response_state, _ = stateSocket.recvfrom(256) | |
if response_state != 'ok': | |
response_state = response_state.decode('ASCII') | |
list = response_state.replace(';', ':').split(':') | |
battery = int(list[21]) | |
pitch = int(list[1]) | |
except: | |
break | |
def sendCommand(command): | |
global response | |
timestamp = int(time.time() * 1000) | |
clientSocket.sendto(command.encode('utf-8'), address) | |
while response is None: | |
if (time.time() * 1000) – timestamp > 5 * 1000: | |
return False | |
return response | |
def sendReadCommand(command): | |
response = sendCommand(command) | |
try: | |
response = str(response) | |
except: | |
pass | |
return response | |
def sendControlCommand(command): | |
response = None | |
for i in range(0, 5): | |
response = sendCommand(command) | |
if response == 'OK' or response == 'ok': | |
return True | |
return False | |
# ———————————————– | |
# Local calls | |
# ———————————————– | |
probabilityThreshold = 25 | |
def displayPredictions(jsonPrediction, frame): | |
global camera_Width, camera_Heigth | |
jsonObj = json.loads(jsonPrediction) | |
preds = jsonObj['predictions'] | |
sorted_preds = sorted(preds, key=lambda x: x['probability'], reverse=True) | |
strSortedPreds = "" | |
resultFound = False | |
if (sorted_preds): | |
detected = False | |
for pred in sorted_preds: | |
# tag name and prob * 100 | |
tagName = str(pred['tagName']) | |
probability = pred['probability'] * 100 | |
# apply threshold | |
if (probability >= probabilityThreshold): | |
detected = True | |
bb = pred['boundingBox'] | |
# adjust to size | |
height = int(bb['height'] * camera_Heigth) | |
left = int(bb['left'] * camera_Width) | |
top = int(bb['top'] * camera_Heigth) | |
width = int(bb['width'] * camera_Width) | |
# draw bounding boxes | |
start_point = (left, top) | |
end_point = (left + width, top + height) | |
color = (0, 0, 255) | |
if(tagName == "squirrel"): | |
color = (0, 255, 0) | |
thickness = 2 | |
cv2.rectangle(img, start_point, end_point, color, thickness) | |
# display labels | |
start_point_label = (left, top – 5) | |
text = "{}: {:.4f}".format(tagName, probability) | |
cv2.putText(img, text, start_point_label, cv2.FONT_HERSHEY_SIMPLEX, 0.5, color, 2) | |
print(f'{tagName} – {probability}') | |
print(f'start point: {start_point} – end point: {end_point}') | |
print(jsonPrediction) | |
if (detected == True): | |
detImageFileName = frameImageFileName.replace('tmp', 'det') | |
cv2.imwrite(detImageFileName, img) | |
detJsonFileName = detImageFileName.replace('png', 'json') | |
save_text = open(detJsonFileName, 'w') | |
save_text.write(jsonStr) | |
save_text.close() | |
return strSortedPreds | |
# instantiate flask app and push a context | |
app = Flask(__name__) | |
# ———————————————– | |
# Main program | |
# ———————————————– | |
# connection info | |
UDP_IP = '192.168.10.1' | |
UDP_PORT = 8889 | |
last_received_command = time.time() | |
STATE_UDP_PORT = 8890 | |
address = (UDP_IP, UDP_PORT) | |
response = None | |
response_state = None | |
clientSocket = socket.socket(socket.AF_INET, socket.SOCK_DGRAM) | |
clientSocket.bind(('', UDP_PORT)) | |
stateSocket = socket.socket(socket.AF_INET, socket.SOCK_DGRAM) | |
stateSocket.bind(('', STATE_UDP_PORT)) | |
# start threads | |
recThread = threading.Thread(target=receiveData) | |
recThread.daemon = True | |
recThread.start() | |
stateThread = threading.Thread(target=readStates) | |
stateThread.daemon = True | |
stateThread.start() | |
# connect to drone | |
response = sendControlCommand("command") | |
print(f'command response: {response}') | |
response = sendControlCommand("streamon") | |
print(f'streamon response: {response}') | |
# drone information | |
battery = 0 | |
pitch = 0 | |
flyUnit = 50 | |
# open UDP | |
camera_Width = 640 #1280 | |
camera_Heigth = 480 #960 | |
camera_Size = (camera_Width, camera_Heigth) | |
# open UDP | |
print(f'opening UDP video feed, wait 2 seconds ') | |
videoUDP = 'udp://192.168.10.1:11111' | |
cap = cv2.VideoCapture(videoUDP) | |
time.sleep(2) | |
# open video writer to save video | |
vid_cod = cv2.VideoWriter_fourcc(*'XVID') | |
vid_output = cv2.VideoWriter("videos/dronecam_video.mp4", vid_cod, 20.0, camera_Size) | |
# open | |
drone_flying = False | |
detectionEnabled = False | |
i = 0 | |
while True: | |
i = i + 1 | |
imgNumber = str(i).zfill(5) | |
start_time = time.time() | |
sendReadCommand('battery?') | |
print(f'battery: {battery} % – pitch: {pitch} – i: {imgNumber}') | |
try: | |
ret, frame = cap.read() | |
img = cv2.resize(frame, camera_Size) | |
if (detectionEnabled): | |
# save image to disk and open it | |
frameImageFileName = str(f'tmp\image{imgNumber}.png') | |
cv2.imwrite(frameImageFileName, img) | |
with open(frameImageFileName, 'rb') as f: | |
img_data = f.read() | |
# analyze file in local container | |
api_url = "http://127.0.0.1:80/image" | |
r = requests.post(api_url, data=img_data) | |
with app.app_context(): | |
jsonResults = jsonify(r.json()) | |
jsonStr = jsonResults.get_data(as_text=True) | |
displayPredictions(jsonStr, frame) | |
fpsInfo = "" | |
if (time.time() – start_time ) > 0: | |
fpsInfo = "FPS: " + str(1.0 / (time.time() – start_time)) # FPS = 1 / time to process loop | |
font = cv2.FONT_HERSHEY_DUPLEX | |
cv2.putText(img, fpsInfo, (10, 20), font, 0.4, (255, 255, 255), 1) | |
cv2.imshow('@elbruno – DJI Tello Camera', img) | |
vid_output.write(img) | |
except Exception as e: | |
detectionEnabled = False | |
print(f'exc: {e}') | |
pass | |
# key controller | |
key = cv2.waitKey(1) & 0xFF | |
if key == ord("d"): | |
if (detectionEnabled == True): | |
detectionEnabled = False | |
else: | |
detectionEnabled = True | |
if cv2.waitKey(1) & 0xFF == ord('t'): | |
drone_flying = True | |
detection_started = True | |
msg = "takeoff" | |
sendCommand(msg) | |
if cv2.waitKey(1) & 0xFF == ord('l'): | |
drone_flying = False | |
msg = "land" | |
sendCommand(msg) | |
time.sleep(5) | |
if (cv2.waitKey(1) & 0xFF == ord('w')) and drone_flying == True: | |
msg = str(f"up {flyUnit}") | |
sendCommand(msg) | |
time.sleep(1) | |
if (cv2.waitKey(1) & 0xFF == ord('s')) and drone_flying == True: | |
msg = str(f"down {flyUnit}") | |
sendCommand(msg) | |
time.sleep(1) | |
if (cv2.waitKey(1) & 0xFF == ord('a')) and drone_flying == True: | |
msg = str(f"left {flyUnit}") | |
sendCommand(msg) | |
time.sleep(1) | |
if (cv2.waitKey(1) & 0xFF == ord('d')) and drone_flying == True: | |
msg = str(f"right {flyUnit}") | |
sendCommand(msg) | |
time.sleep(1) | |
if (cv2.waitKey(1) & 0xFF == ord('r')) and drone_flying == True: | |
msg = str(f"forward {flyUnit}") | |
sendCommand(msg) | |
time.sleep(1) | |
if (cv2.waitKey(1) & 0xFF == ord('f')) and drone_flying == True: | |
msg = str(f"back {flyUnit}") | |
sendCommand(msg) | |
time.sleep(1) | |
if key == ord("q"): | |
break | |
response = sendControlCommand("streamoff") | |
print(f'streamon response: {response}') | |
# close the already opened camera, and the video file | |
cap.release() | |
vid_output.release() | |
cv2.destroyAllWindows() |
