Hi !
In my (spanish) podcast I often complain that we always speak about JavaScript and Docker. And, it also applies to my blog. After my yesterday’s post, someone asked
How we can create a folder on the creation process of the Azure IoT module?
This is not an Azure IoT question, is mostly a docker one. And the answer is easy, just add these lines to create and grant permissions to a folder named [fsexchange]
# create folder for file exchange
RUN mkdir /fsexchange
RUN chown 1000 /fsexchange
RUN chmod 700 /fsexchange
RUN chown 1000 /.
RUN chmod 700 /.

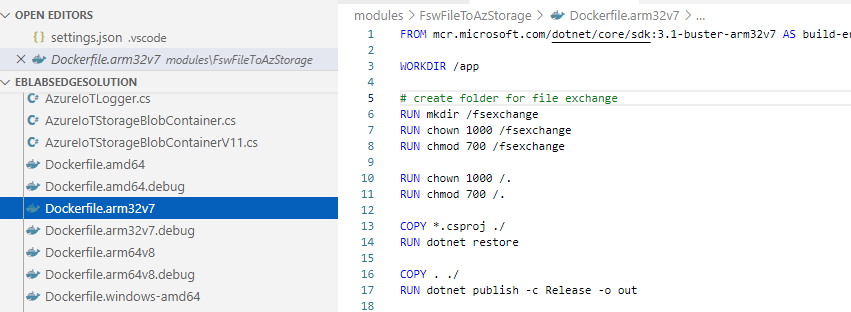

And, you need to do this in each one of the docker definition files that you may use. Like
- Dockerfile.amd64
- Dockerfile.arm32v7
- Dockerfile.arm64v8
- Dockerfile.windows-amd64
- Dockerfile.amd64.debug
- Dockerfile.arm32v7.debug
- Dockerfile.arm64v8.debug
And that’s it! super easy!
References
- Give modules access to a device’s local storage
- Mapping a local ☁ Azure IoT Edge folder module with an Edge device folder 📁
