#dotnet – Display the 🎦 camera feed in a WinForm using #OpenCV and #net5

Buy Me A Coffee

Hi !

Back on the Windows Forms days, cameras were tricky. We didn’t have a lot of libraries to work, and they usually require some extra work to handle unexpected errors. With Net 5 and OpenCVSharp, we can create a simple WebCam viewer like this one.

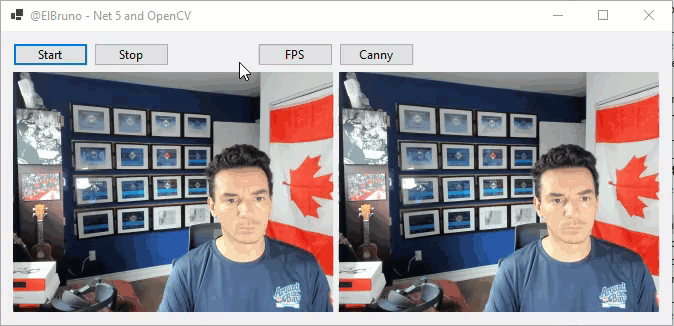

net5 opencv live camera and effects

Let’s start with a [Take a Photo] Windows Form app. This App have a PictureBox and a Button, and it’s all connected with these lines.

using System;
using System.Windows.Forms;
using OpenCvSharp;
namespace Demo03_WinForm
{
public partial class Form1 : Form
{
private VideoCapture _capture;
private Mat _image;
public Form1()
{
InitializeComponent();
}
private void Form1_Load(object sender, EventArgs e)
{
_capture = new VideoCapture(0);
_image = new Mat();
}
private void button1_Click(object sender, EventArgs e)
{
_capture.Read(_image);
if (_image.Empty()) return;
pictureBox1.Image = OpenCvSharp.Extensions.BitmapConverter.ToBitmap(_image);
}
}
}

As you can see it’s super simple, and the main lesson to learn here is on line 27, when we need to convert the OpenCV Mat object to a standard Bitmap to be used on a PictureBox.

We can some more features, like the one in the animation before

  • Start / Stop Camera Preview
  • Calculate FPS
  • Add Canny effect

with the following lines

using System;
using System.Threading;
using System.Windows.Forms;
using OpenCvSharp;
using OpenCvSharp.Extensions;
using Point = OpenCvSharp.Point;
using Size = OpenCvSharp.Size;
namespace Demo04_WinForm
{
public partial class Form1 : Form
{
private bool _run = false;
private bool _canny = false;
private VideoCapture _capture;
private Mat _image;
private Thread _cameraThread;
private bool _fps = false;
public Form1()
{
InitializeComponent();
Load += Form1_Load;
Closed += Form1_Closed;
}
private void Form1_Closed(object sender, EventArgs e)
{
_cameraThread.Interrupt();
_capture.Release();
}
private void btnStart_Click(object sender, EventArgs e)
{
_run = true;
}
private void btnStop_Click(object sender, EventArgs e)
{
_run = false;
}
private void btnCanny_Click(object sender, EventArgs e)
{
_canny = !_canny;
}
private void buttonFPS_Click(object sender, EventArgs e)
{
_fps = !_fps;
}
private void Form1_Load(object sender, EventArgs e)
{
_capture = new VideoCapture(0);
_image = new Mat();
_cameraThread = new Thread(new ThreadStart(CaptureCameraCallback));
_cameraThread.Start();
}
private void CaptureCameraCallback()
{
while (true)
{
if (!_run) continue;
var startTime = DateTime.Now;
_capture.Read(_image);
if (_image.Empty()) return;
var imageRes = new Mat();
Cv2.Resize(_image, imageRes, new Size(320, 240));
var newImage = imageRes.Clone();
if (_canny)
Cv2.Canny(imageRes, newImage, 50, 200);
if (_fps)
{
var diff = DateTime.Now startTime;
var fpsInfo = $"FPS: Nan";
if (diff.Milliseconds > 0)
{
var fpsVal = 1.0 / diff.Milliseconds * 1000;
fpsInfo = $"FPS: {fpsVal:00}";
}
Cv2.PutText(imageRes, fpsInfo, new Point(10, 20), HersheyFonts.HersheyComplexSmall, 1, Scalar.White);
}
var bmpWebCam = BitmapConverter.ToBitmap(imageRes);
var bmpEffect = BitmapConverter.ToBitmap(newImage);
pictureBoxWebCam.Image = bmpWebCam;
pictureBoxEffect.Image = bmpEffect;
}
}
}
}

Less than 100 lines of code to do some camera image processing in WinForms!

That’s all for today!

Happy coding!

Greetings

El Bruno

More posts in my blog ElBruno.com.
